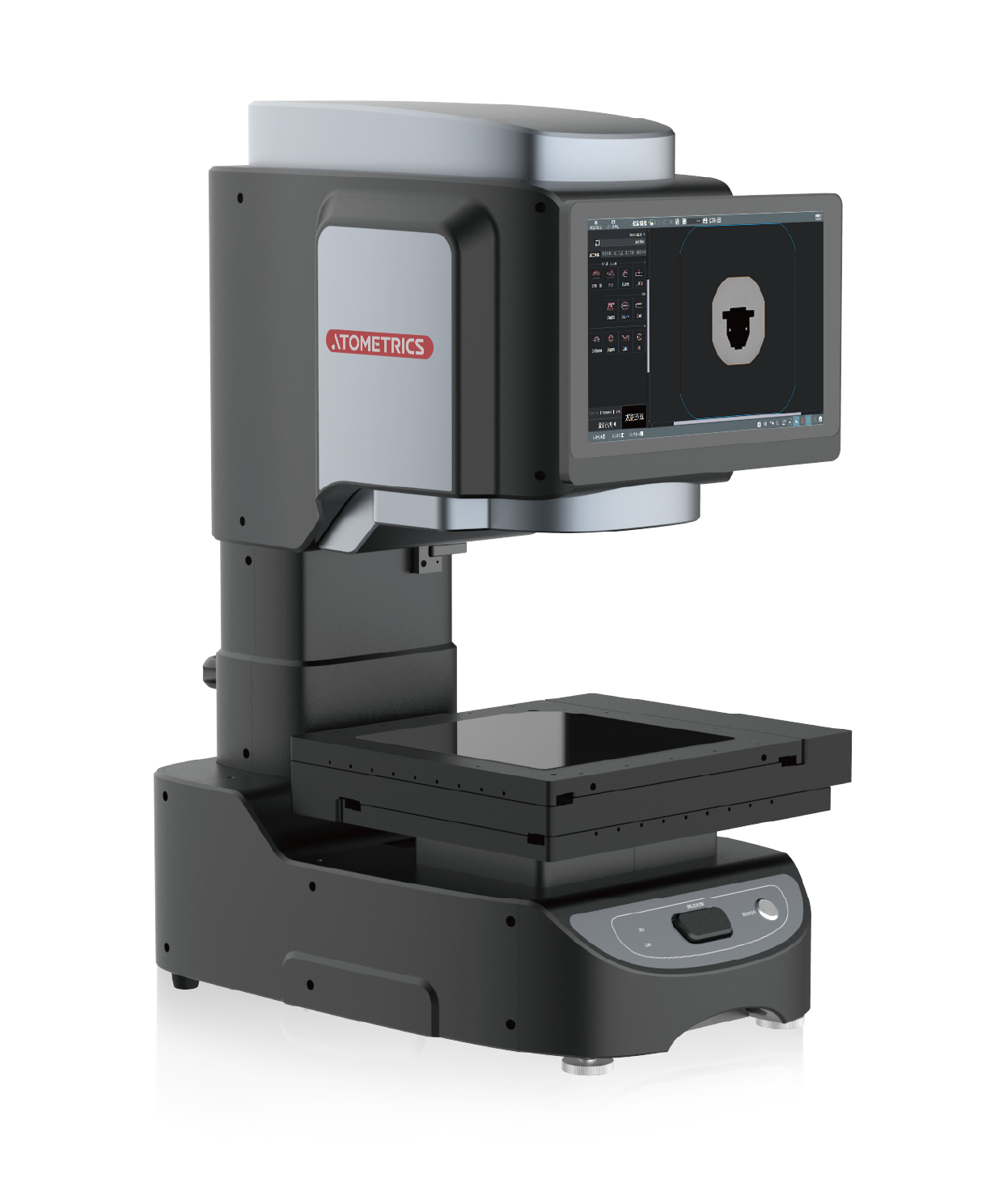

Image Dimension Measurement System

Randomly place and one click measurement

Efficient precise Random placement Automatically determine OK/NG

Instantly measure 100 products with high precision, significantly reducing measurement time No need for professional operation, no human error

Download Quotation Request Demo Testing

Product characteristics

Random placement

No need to make positioning

One click all measurements can be done

100 samples can be measured simultaneously, with 300 sizes per sample.

Duo telecentric

High numerical aperture, low distortion

Full field of view ensures accuracy

Compared to traditional lenses, it increases the field of view by 36%

Dual view simultaneous display

Realize simultaneous measurement of large field of view and high precision; Faster and smarter.

Automatically generate reports

The report is automatically generated locally, saved automatically, without the need for complicated settings or additional software.

Application examples

Dimensional size

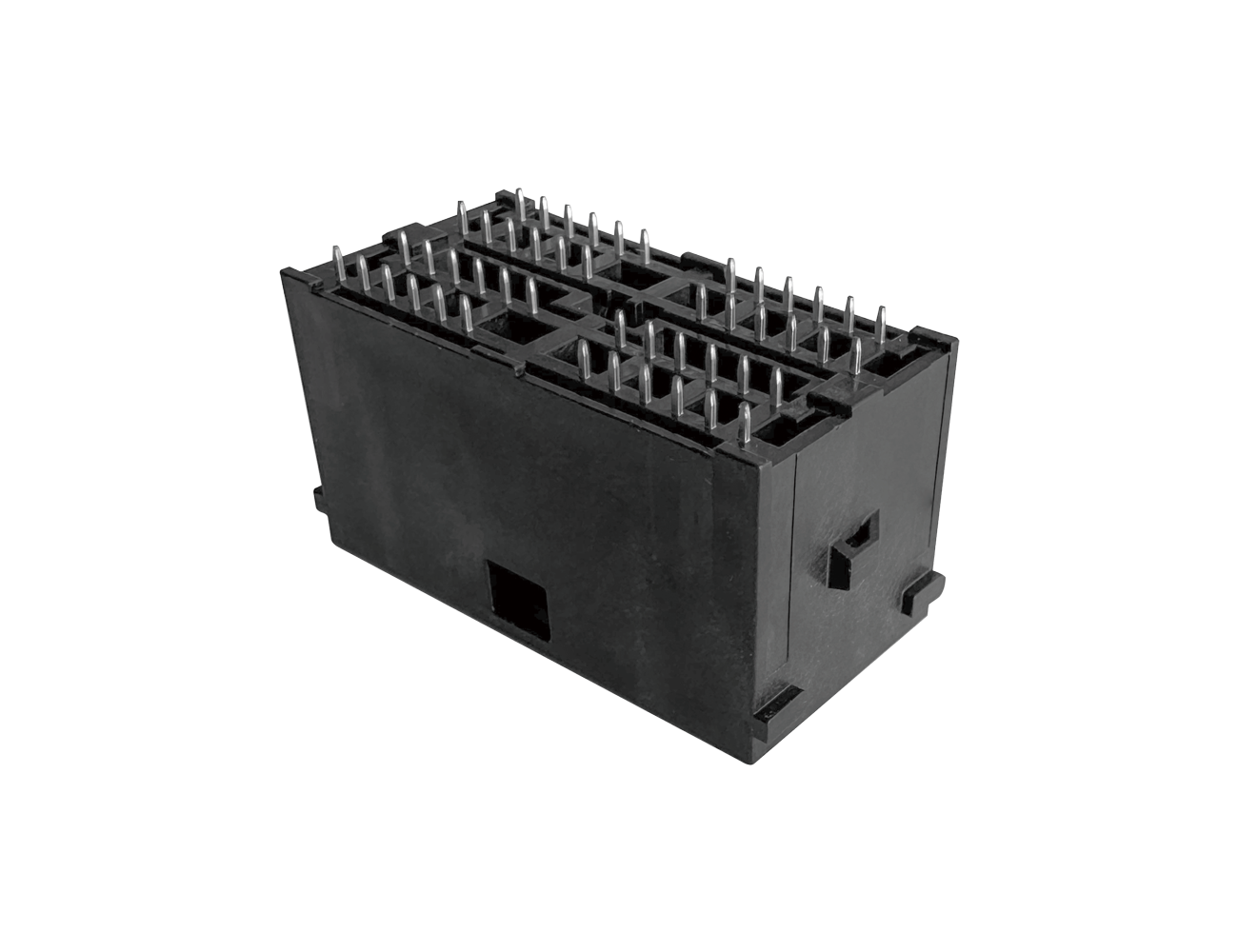

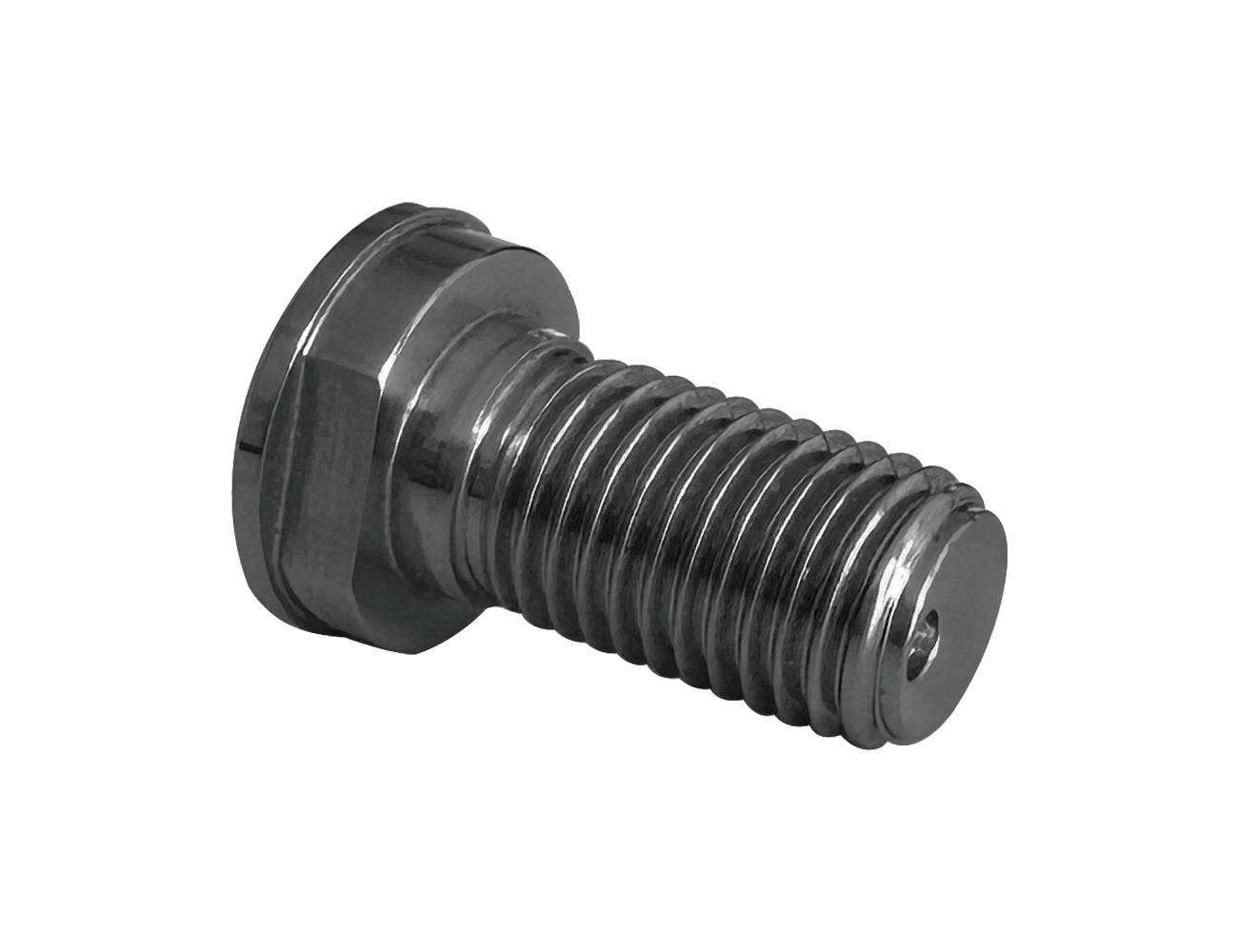

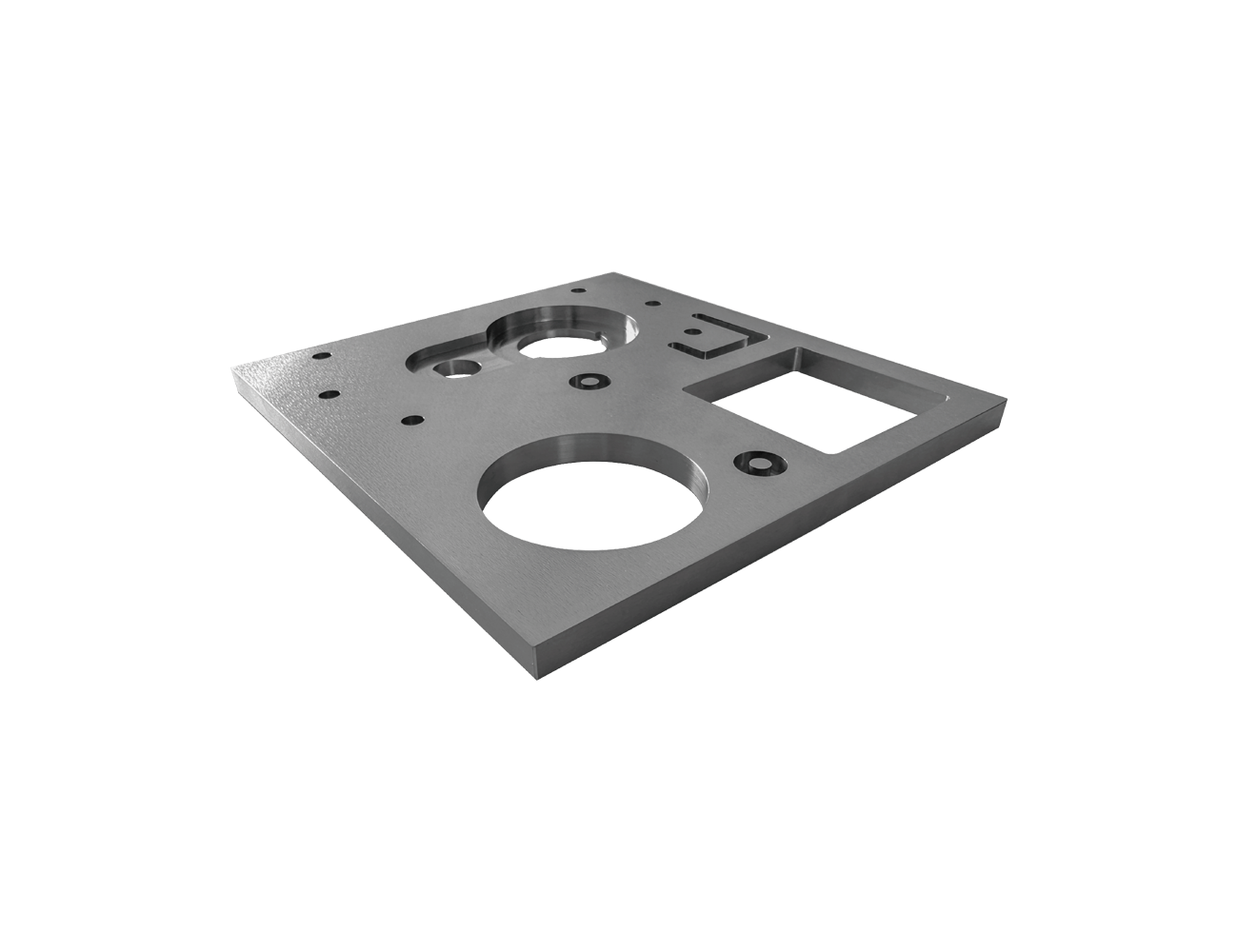

CNC machined parts

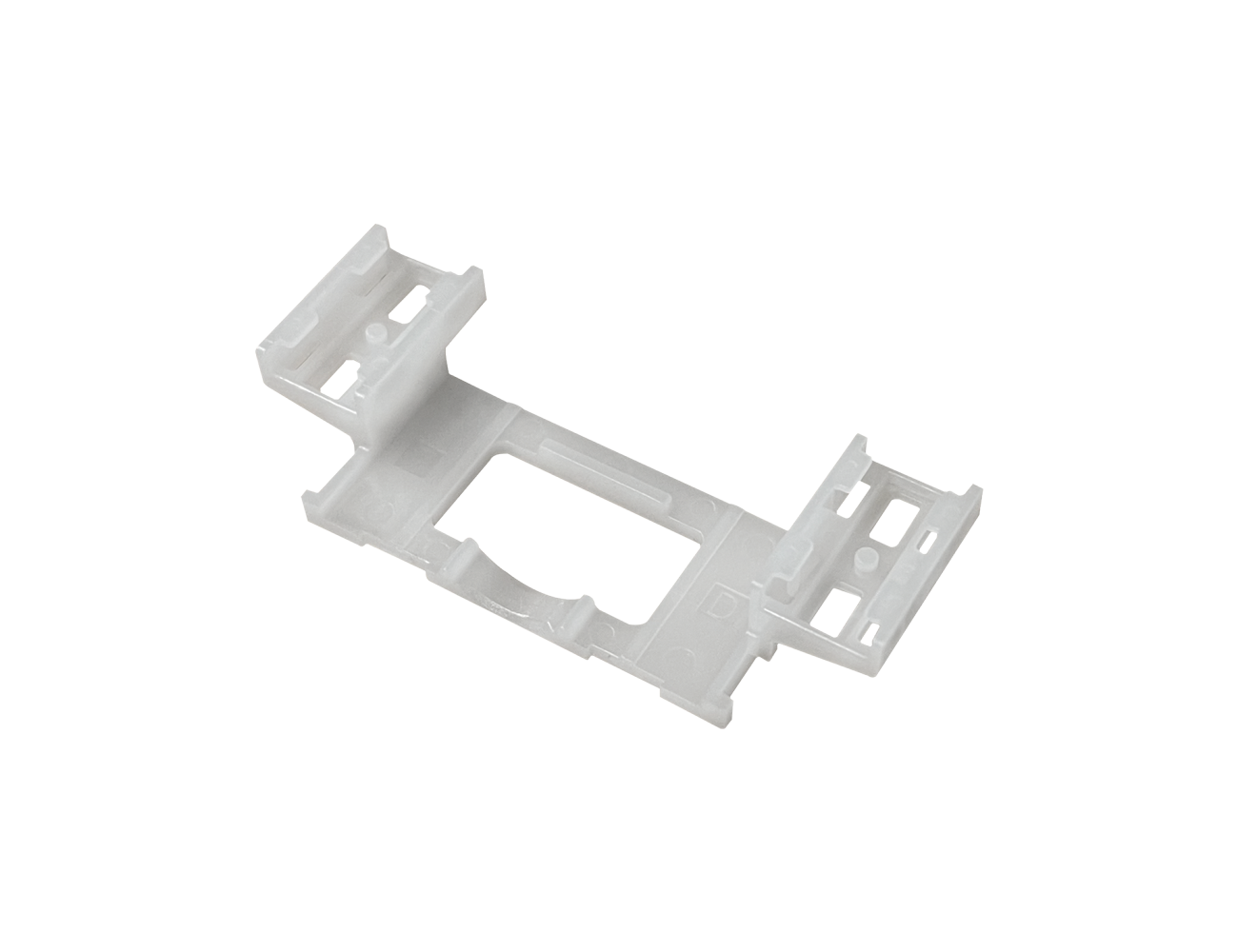

Injection molded parts

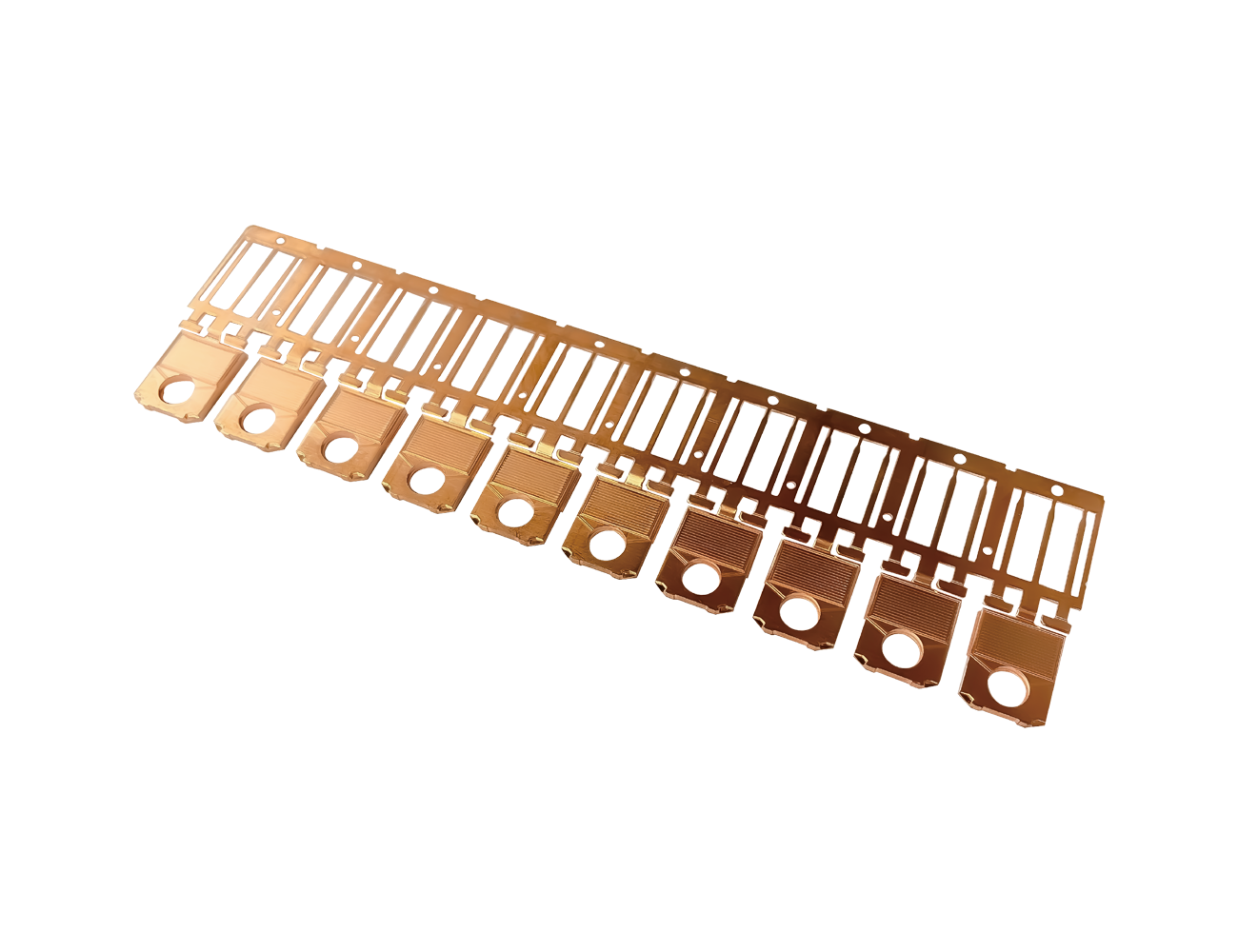

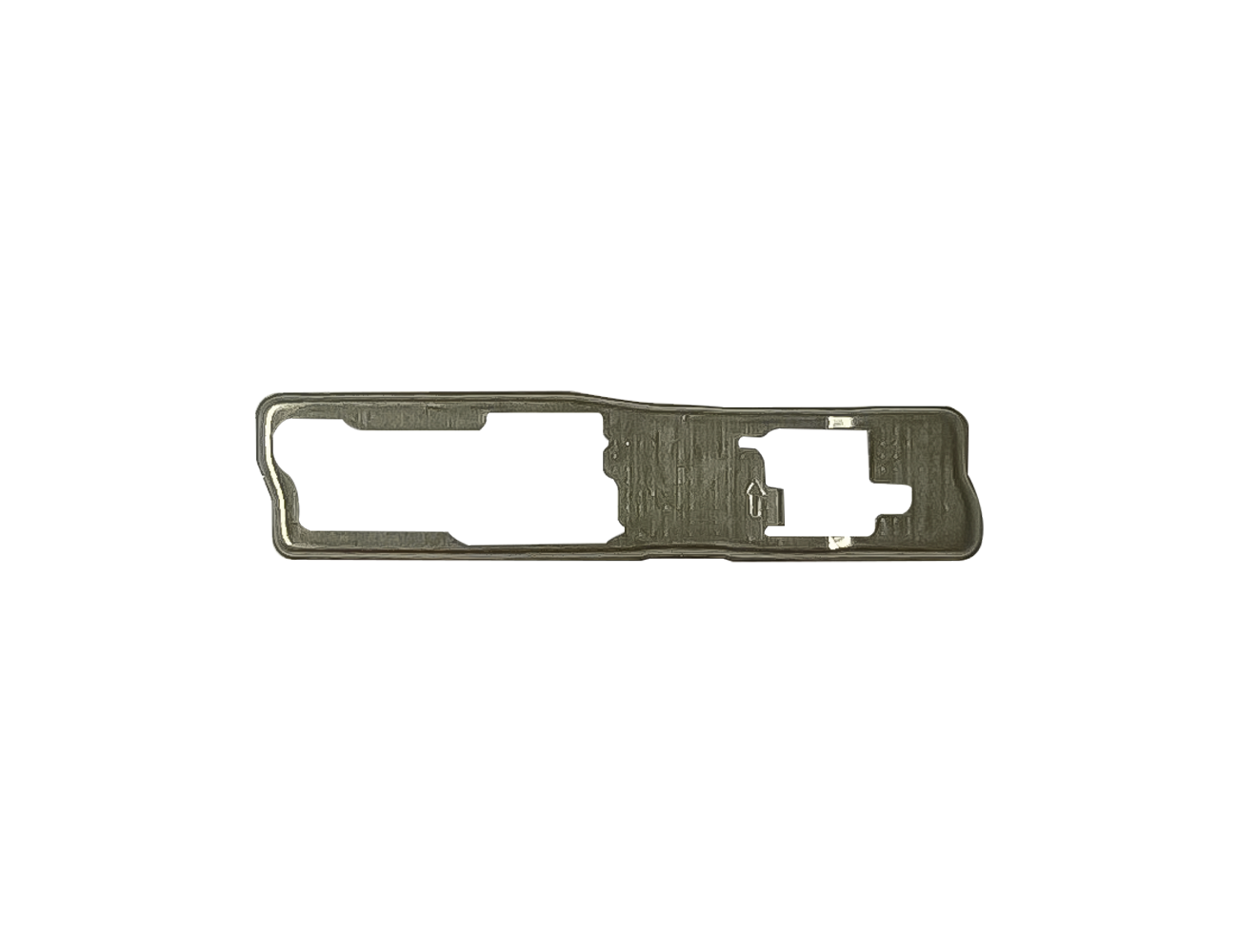

Punching shrapnel

Download

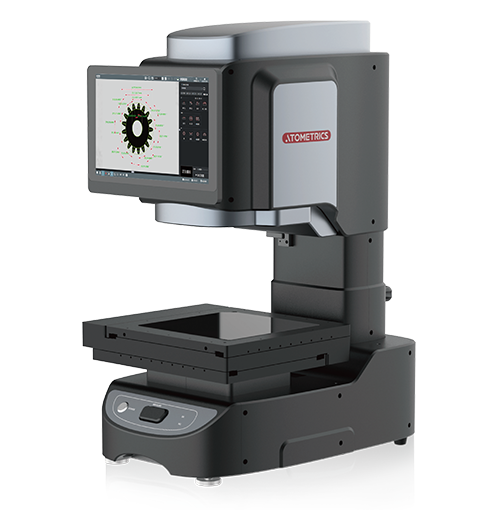

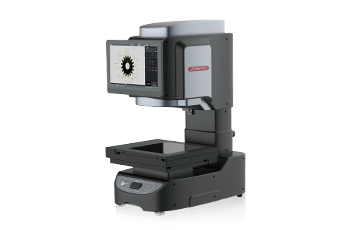

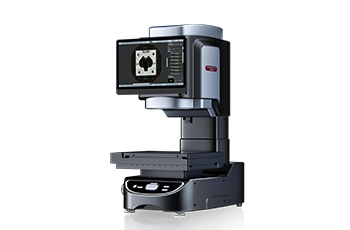

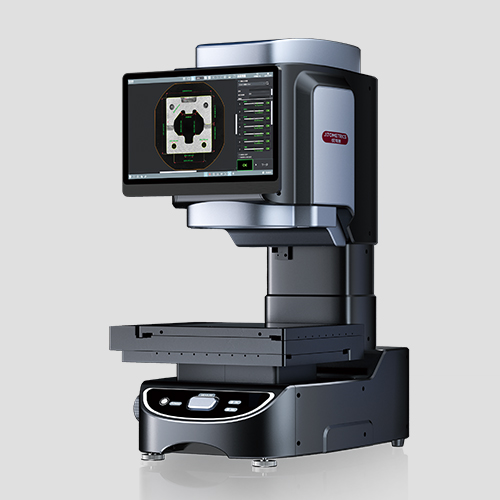

One-Touch Image Dimension Measurement System FM Series

Product Catalog

Click to download
