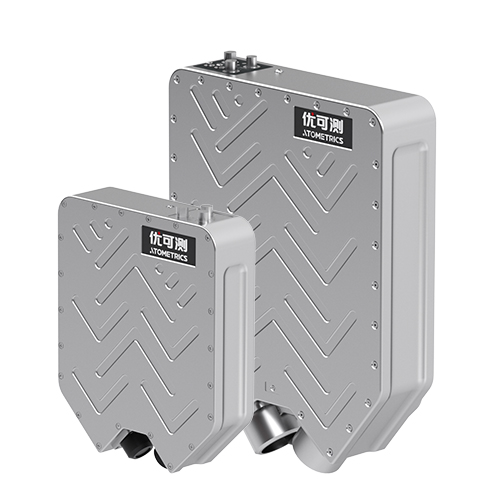

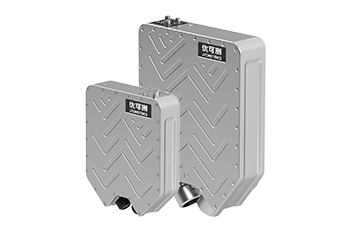

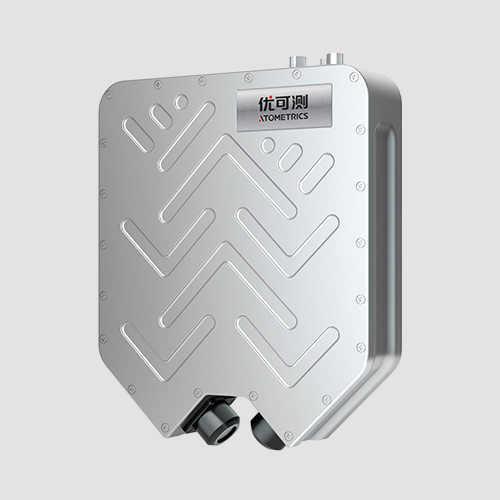

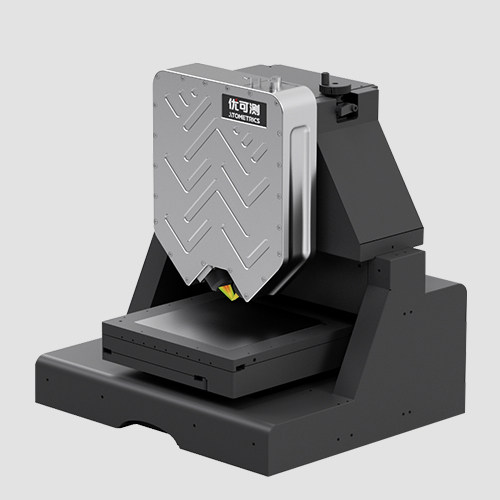

3D Spectrum Confocal Sensor AS Series

Simultaneous 3D measurement of multi-layer surfaces with an accuracy of up to 0.05um

Specular Reflection Online high-precision 3D measurement SDK available

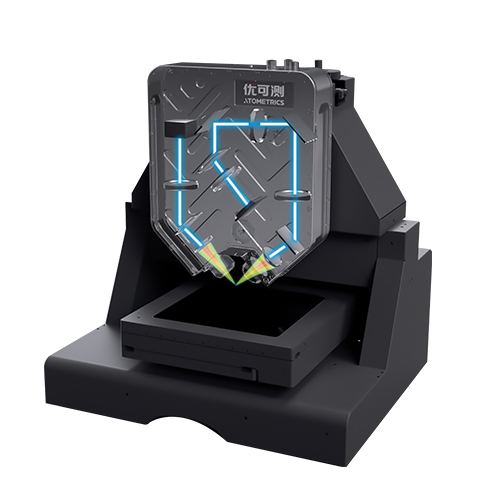

By splitting white light into a spectrum of continuous wavelengths, each wavelength is focused on a specific position on the surface of the object being measured to form a vertical focal plane, thereby obtaining the object's three-dimensional morphology,

Application examples

Semiconductor

Electronics
