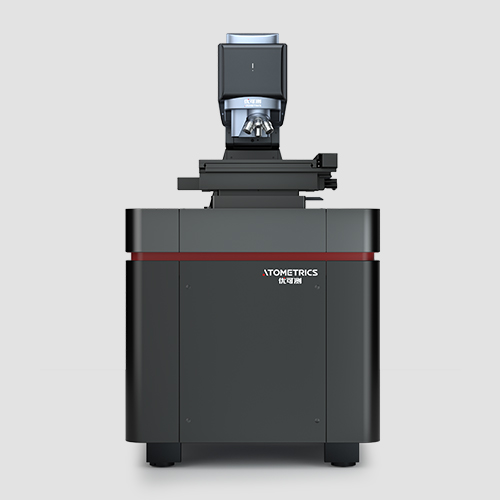

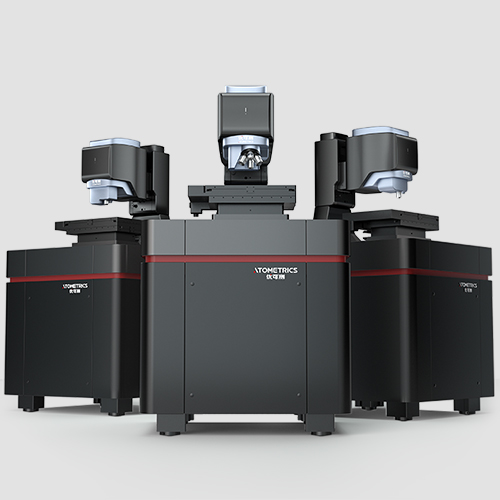

White Light interferometer AM8000 Series

Sub-nanometer accuracy Auto focus and leveling Diversified measurement functions and application scenarios

Roughness 3D topography Step Height

The AM8000 series not only meets the high-precision measurement requirements of the AM7000 series, but also has more efficient intelligent control, which can automatically search for workpieces, focus, and level with one click. At the same time, the XY ax

Product characteristics

Efficient intelligent control

One click auto focus and leveling, 8 times more efficient than manual operation

Multifunctional measurement

Featuring a variety of splicing methods, multi-point measurement, non spherical K-value calculation, focusing curve and other rich measurement functions, it meets the diverse needs of customers

Stable measurement performance

Unique low center of gravity structure, increased vibration isolation stability by 2.7 times

Covering more application scenarios

Adapt to more interferometric lenses (large field of view, long focal length, high NA), increase measurement range by 3 times, increase load capacity by 2.5 times, to meet more applications

Application examples

Roughness

0.05nm lens roughness

Gear splicing measurement roughness

Roller surface roughness

Surface roughness of cosmetic mica

Measurement of Metal Surface Texture

Flatness

Ultra smooth flatness measurement

3D Topographiy

Measurement of wafer surface etching

Surface morphology and structure of silicon wafer

Surface of capacitive components

Wafer cutting depth

Cylindrical mirror

Scratches on the glass cover of the mobile phone

Micro lens compound eye

PCB size measurement

Step Height

Character depth
